1.3MP Surround View Car Camera
Model: VKC-OX01F10C-H190XA
The module uses a high-dynamic car-scale image sensor and cooperates with mainstream serial transmission chips, making the module highly reliable. The module has wide applicability and can be adapted to different SOC platforms.
- High-Performance Automotive Grade;
- Advanced On−Sensor HDR;
- Multi−Camera Synchronization Support.
Application: Automotive Surround View
|
SPECIFICATION |
|
|
Sensor |
OmniVision 1.3MP OX01F10 RGB |
|
ISP |
Built-in |
|
Image Size |
1/3.55 inch CMOS |
|
Output Pixels |
1280H x 720V |
|
Pixel Size |
3.0um * 3.0um |
|
Frame Rate |
1280*720@30fps |
|
HDR Support |
Yes |
|
Output data |
YUV422@8bit |
|
Serializer |
MAXIM MAX96705 |
|
Camera Interface |
GMSL |
|
Power Supply |
9-16V POC |
|
Current |
<150mA@12VDC |
|
Connector |
Amphenol Fakra (Z Code) |
|
Operating temp.range |
-40~+85℃ |
|
Waterproof |
Refer to the lens |
|

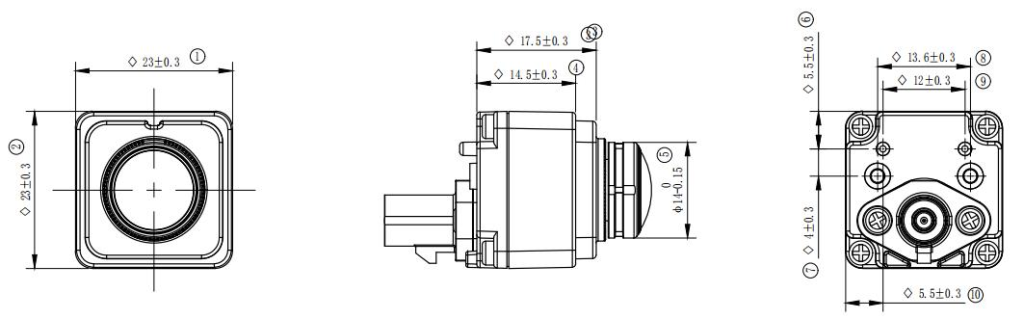

Dimension |
W: 23mm, L: 23mm, H: 14.5mm |
|
Weight |
<50g |
