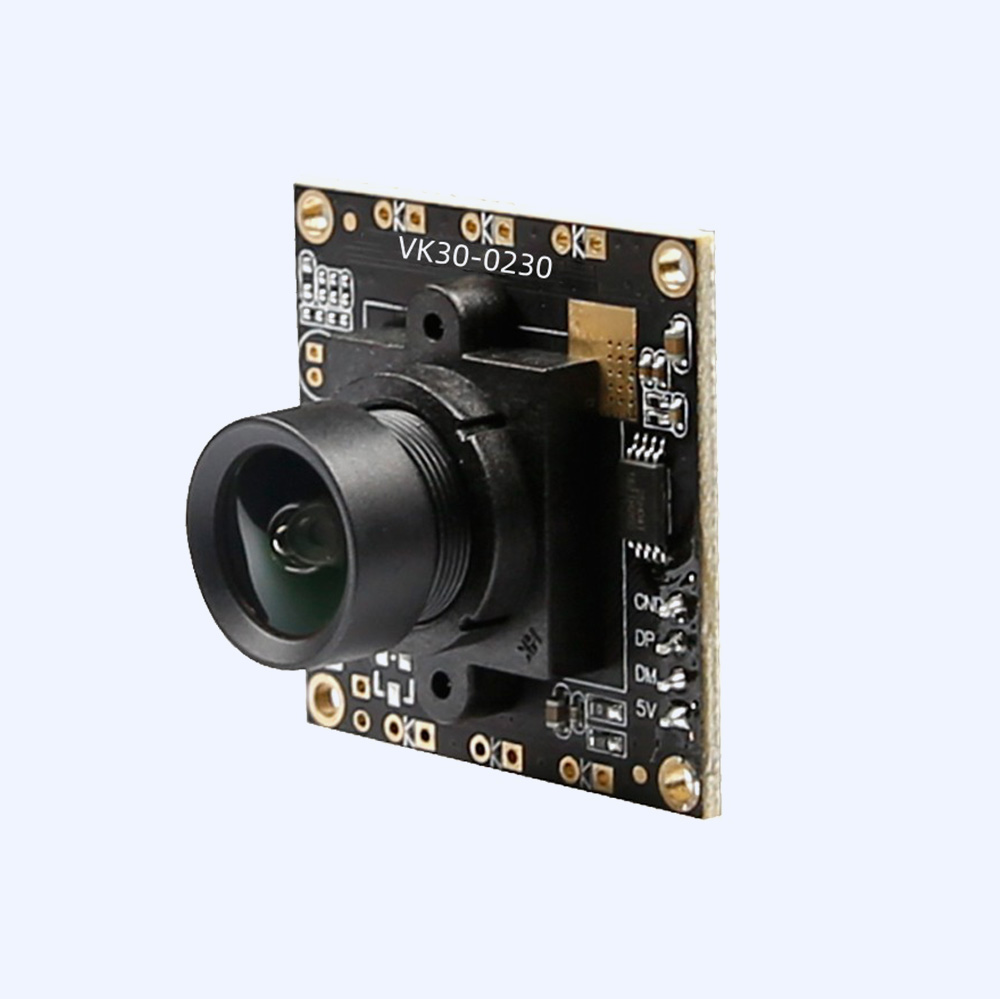

2MP AR0230 USB2.0 Camera Module
Model: VK30-0230
The camera module employs a 1/2.7’’ AR0230 image sensor, delivering a 2.0-megapixel resolution of 1920×1080. With a pixel size of 3um x 3um, it supports MJPEG and YUV2 output formats. The camera provides a wide field of view, with angles of 100 degrees horizontally, 95 degrees horizontally, and 91 degrees vertically. Featuring a fixed focus lens (EFL: 2.88mm, F/NO: 2.7mm), electronic rolling shutter, and audio input support, it offers versatility for various applications.
- 2 Megapixel 1920 x 1080
- Module Size: 32mm*32mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/2.7’’ AR0230 |
|
Pixel Size |
3um(H) x 3um(V) |
|
Resolution |
2.0 Megapixel 1920×1080 |
|
Output Format |
MJPEG, YUV2 |
|
FOV |
D:100 H:95 V:91 |
|
Lens |
EFL：2.88mm F/NO：2.7mm |
|
Focus type |
Fixed Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Audio Input |
Support |
|
Protocol & Connection |
Plug & Play, UVC compliant |
|
Output & Power Supply |
USB 2.0 |
|
Power Socket |
4P SMT |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Controllable Features |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Cable length |
Default 1m USB cable |
|

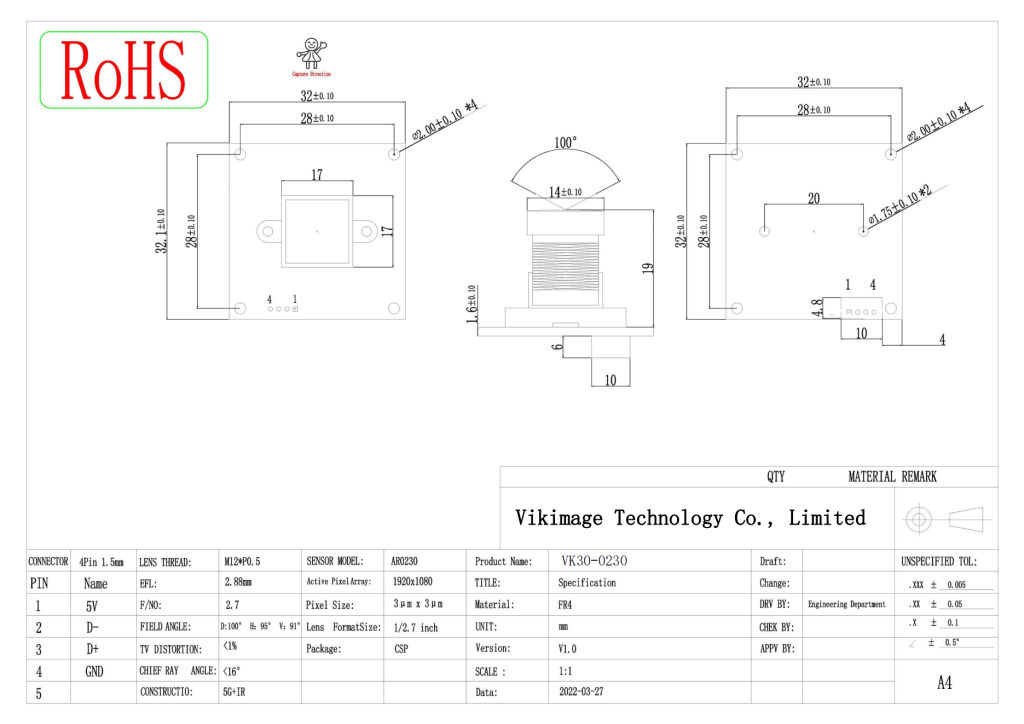

Module Size |
32*32 mm |
