2MP OV2735 H264 USB2.0 Camera Module
Model: VK30-2735H264
The camera module features a 1/2.7’’ OV2735 image sensor, providing a 2.0-megapixel resolution of 1920 x 1080. With a pixel size of 3um x 3um, it supports MJPEG, YUV2, and H264 output formats. The camera offers a field of view of 95 degrees horizontally, 87 degrees horizontally, and 57 degrees vertically. Equipped with a fixed focus lens (EFL: 3.6mm, F/NO: 2.7mm) and audio input support, it is versatile for various applications.
- 2 Megapixel 1920 x 1080
- Module Size: 38mm*38mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/2.7’’ OV2735 |
|
Pixel Size |
3um(H) x 3um(V) |
|
Resolution |
2.0 Megapixel 1920*1080 |
|
Output Format |
MJPEG, YUV2, H264 |
|
FOV |
D:95 H:87 V:57 |
|
Lens |
EFL：3.6mm F/NO：2.7mm |
|
Focus type |
Fixed Focus |
|
Audio Input |
Support |
|
Shutter type |
Electronic Rolling shutter |
|
Protocol & Connection |
Plug & Play, UVC compliant |
|
Output & Power Supply |
USB 2.0 |
|
Power Socket |
4P SMT |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Controllable Features |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Cable length |
Default 1m USB cable |
|

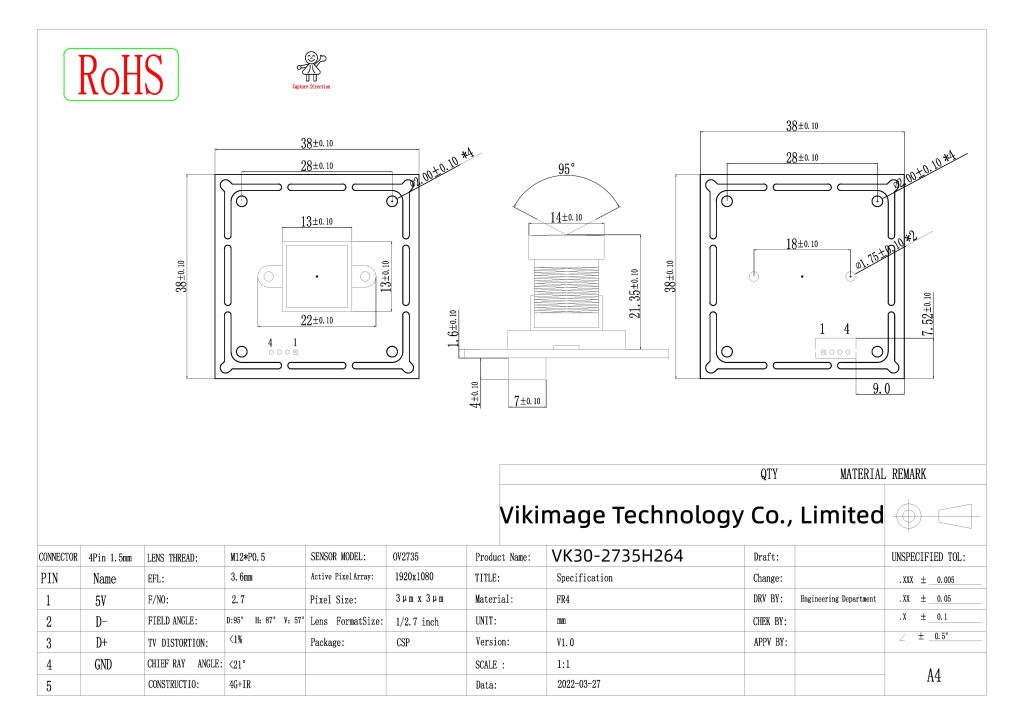

Module Size |
38*38mm |
