3MP Surround View Car Camera
Model: VKC-ISX031C-H190XS
The module uses a high-dynamic car-scale image sensor and cooperates with mainstream serial transmission chips, making the module highly reliable. The module has wide applicability and can be adapted to different SOC platforms.
- High-Performance Automotive Grade;
- Advanced On−Sensor HDR;
- Multi−Camera Synchronization Support.
Application: Automotive Surround View
|
SPECIFICATION |
|
|
Sensor |
Sony 2.95MP ISX031 RGB |
|
ISP |
/ |
|
Image Size |
1/2.42 inch CMOS |
|
Output Pixels |
1920H x 1536V |
|
Pixel Size |
3um Back Side Illuminated (BSI) |
|
Frame Rate |
30fps |
|
HDR Range |
Up to 120 dB |
|
Output data |
MIPI/YUV 422 8bit |
|
Serializer |
MAXIM MAX96717F |
|
Camera Inter-face |
Coaxial |
|
Power Supply |
5-16V POC |
|
Current |
<200mA |
|
Connector |
Z Type Fakra |
|
Operating temp.range |
-40~+85℃ |
|
Waterproof |
Refer to the lens |
|

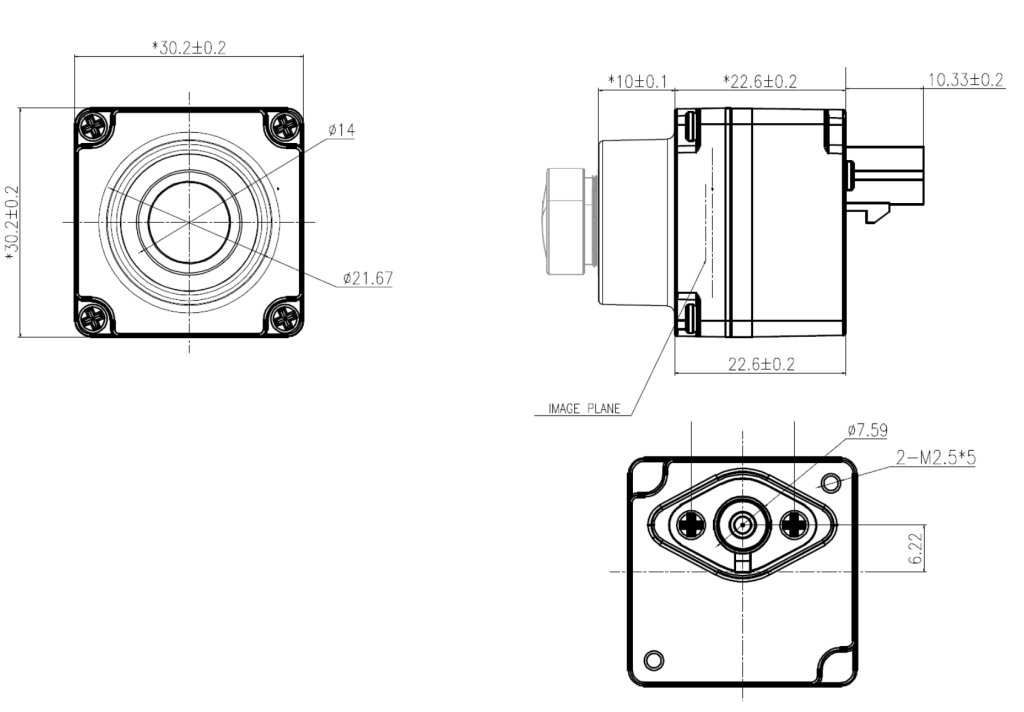

Dimension |
W: 30mm, L: 30mm, H: 22.5mm |
|
Weight |
<50g |
