5MP IMX335 USB2.0 Camera Module
Model: VK30-IMX335
The camera module is equipped with a 1/2.8’’ IMX335 image sensor, delivering a 5.0-megapixel resolution of 2952 x 1944. With a pixel size of 2um x 2um, it supports MJPEG and YUV2 output formats. The camera provides a wide field of view, with angles of 100.4 degrees horizontally, 96 degrees horizontally, and 92 degrees vertically. Featuring a fixed focus lens (EFL: 2.88mm, F/NO: 2.7mm) and an electronic rolling shutter, the camera module also supports audio input, enhancing its functionality for various applications.
- 5 Megapixel 2592 x 1944

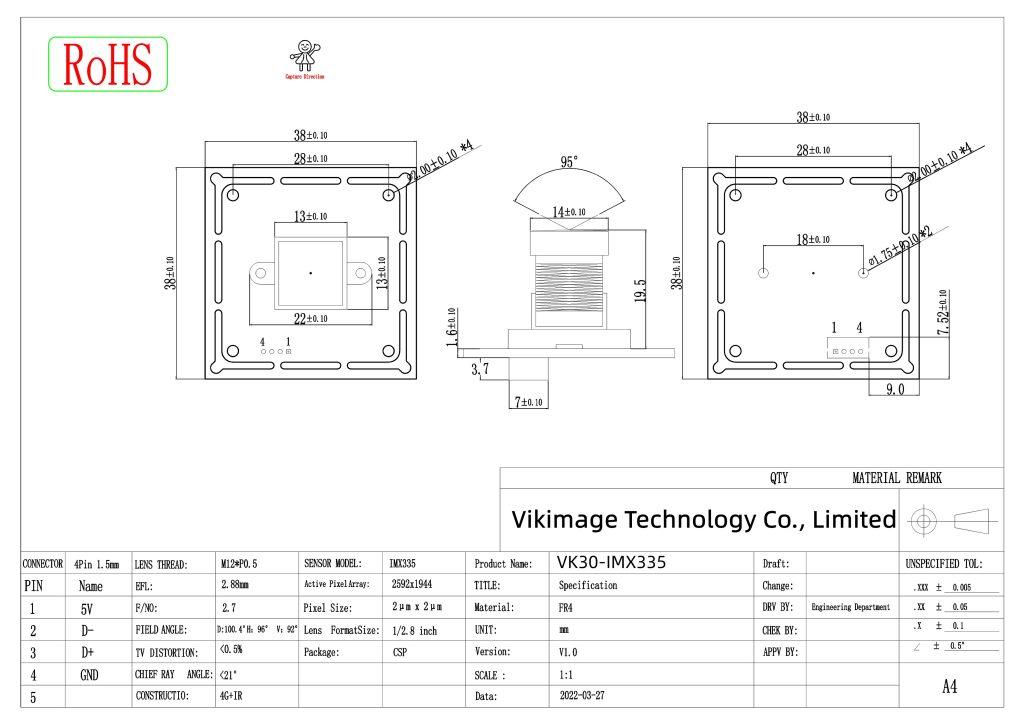

- Module Size: 38mm*38mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/2.8’’ IMX335 |
|
Pixel Size |
2um(H) x 2um(V) |
|
Resolution |
5.0 Megapixel 2952*1944 |
|
Output Format |
MJPEG, YUV2 |
|
FOV |
D:100.4 H:96 V:92 |
|
Lens |
EFL：2.88mm F/NO：2.7mm |
|
Focus type |
Fixed Focus |
|
Audio Input |
Support |
|
Shutter type |
Electronic Rolling shutter |
|
Protocol & Connection |
Plug & Play, UVC compliant |
|
Output & Power Supply |
USB 2.0 |
|
Power Socket |
4P SMT |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Controllable Features |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Cable length |
Default 1m USB cable |
|
Module Size |
38*38mm |
