5MP USB2.0 Camera Module
Model: VK30-PS5520
The camera module features a 1/2.5’’ PS5520 image sensor, providing a 5.0-megapixel resolution of 2592 x 1944. With a pixel size of 2.2um x 2.2um, it supports MJPEG and YUV2 output formats. The camera offers a field of view of 100 degrees horizontally, 87.2 degrees horizontally, and 71 degrees vertically. Equipped with a fixed focus lens (EFL: 2.88mm, F/NO: 2.7mm) and an electronic rolling shutter, it supports audio input. The camera module operates through a Plug & Play, UVC compliant protocol and connection, utilizing USB2.0 for both output and power supply.
- 5 Megapixel 2592 x 1944
- Module Size: 38mm*38mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/2.5’’ PS5520 |
|
Pixel Size |
2.2um(H) x 2.2um(V) |
|
Resolution |
5.0 Megapixel 2592*1944 |
|
Output Format |
MJPEG, YUV2 |
|
FOV |
D:100 H:87.2 V:71 |
|
Lens |
EFL：2.88mm F/NO：2.7mm |
|
Focus type |
Fixed Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Audio Input |
Support |
|
Protocol & Connection |
Plug & Play, UVC compliant |
|
Output & Power Supply |
USB2.0 |
|
Power Socket |
4P SMT |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Controllable Features |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Cable length |
Default 1m USB cable |
|

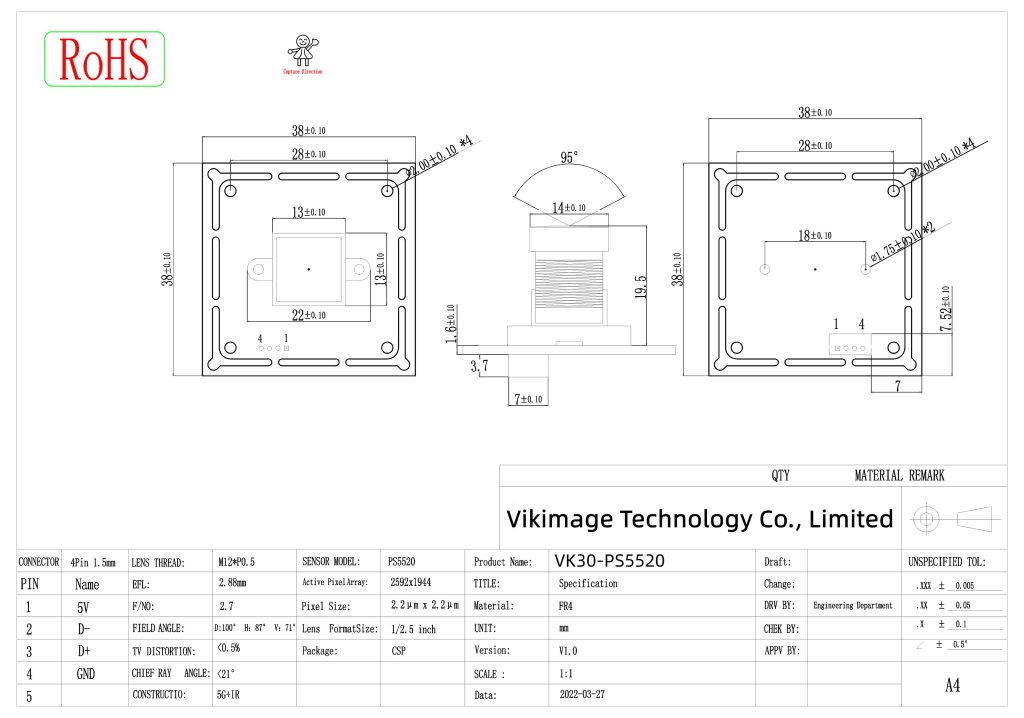

Module Size |
38*38 mm |
