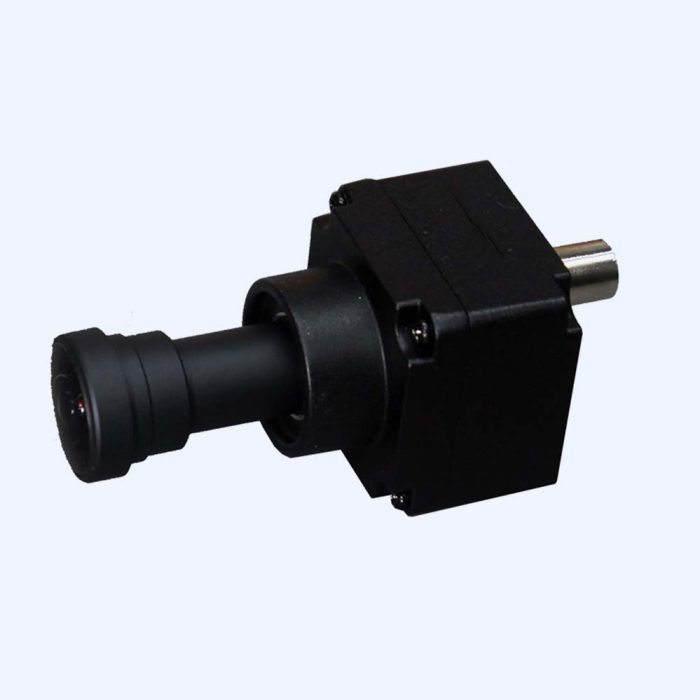

8.3MP Front View Car Camera
Model: VKC-AR0820C-H120S1A
The module uses a high-dynamic car-scale image sensor and cooperates with mainstream serial transmission chips, making the module highly reliable. The module has wide applicability and can be adapted to different SOC platforms.
- High-Performance Automotive Grade;
- Advanced On−Sensor HDR;
- Multi−Camera Synchronization Support.
|
SPECIFICATION |
|
|
Sensor |
Onsemi 8.3MP AR0820 RGB |
|
ISP |
/ |
|
Image Size |
1/2 inch CMOS |
|
Output Pixels |
3840H x 2160V |
|
Pixel Size |
2.1um Back Side Illuminated (BSI) |
|
Frame Rate |
/ |
|
HDR Range |
Up to 140 dB |
|
Output data |
MIPI/RAW 12 |
|
Serializer |
MAXIM MAX9295A |
|
Camera Interface |
Coaxial |
|
Power Supply |
5-16V POC |
|
Current |
<200mA |
|
Connector |
Z Type Fakra |
|
Operating temp.range |
-40~+85℃ |
|
Waterproof |
Refer to the lens |
|

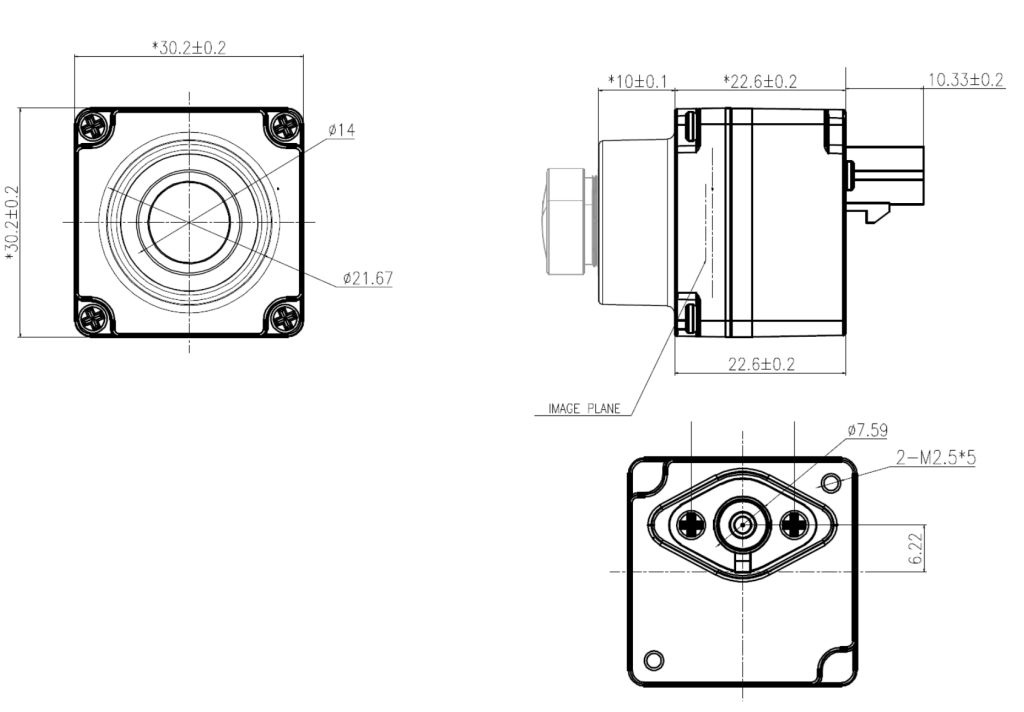

Dimension |
W: 30mm, L: 30mm, H: 22.5mm |
|
Weight |
<50g |
