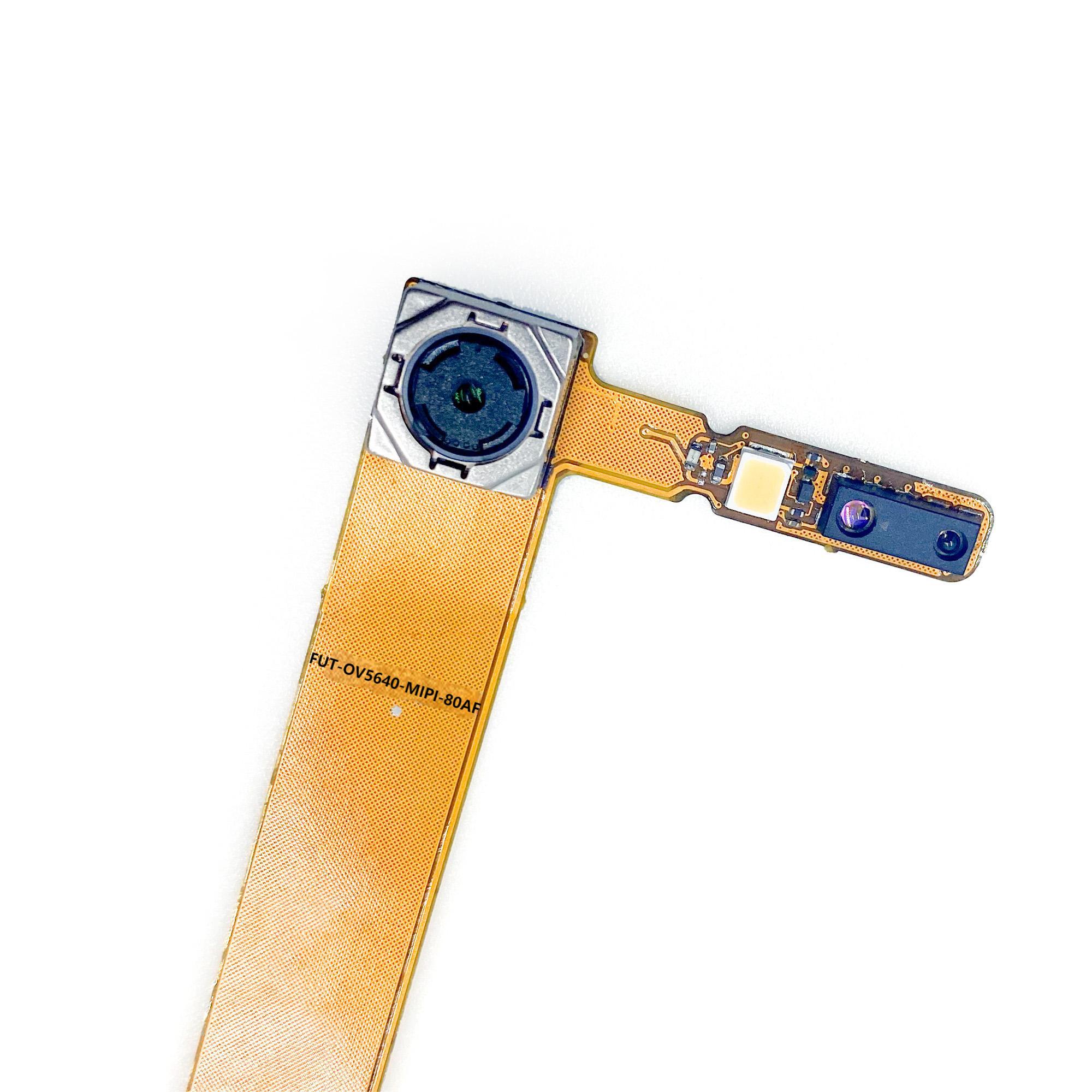

Vikimage 5MP MIPI Camera Module OV5640
Model: FUT-OV5640-MIPI-80AF
The camera module features a 1/4″ OV5640 image sensor with 1.4 µm x 1.4 µm pixels and a 5.0 MP resolution (2592H x 1944V). The lens has a 2.69mm effective focal length and an f/2.4±5% aperture, with auto-focus capability and JX-0549-A0 IR filter. It uses an electronic rolling shutter and operates in temperatures ranging from -40°C to +95°C. The module size is 82.5mm x 32.13mm.
- 5 Megapixel 2592H x 1944V
- Module Size: 82.5mm x 32.13mm
- Electronic Rolling shutter
- Auto Focus
|

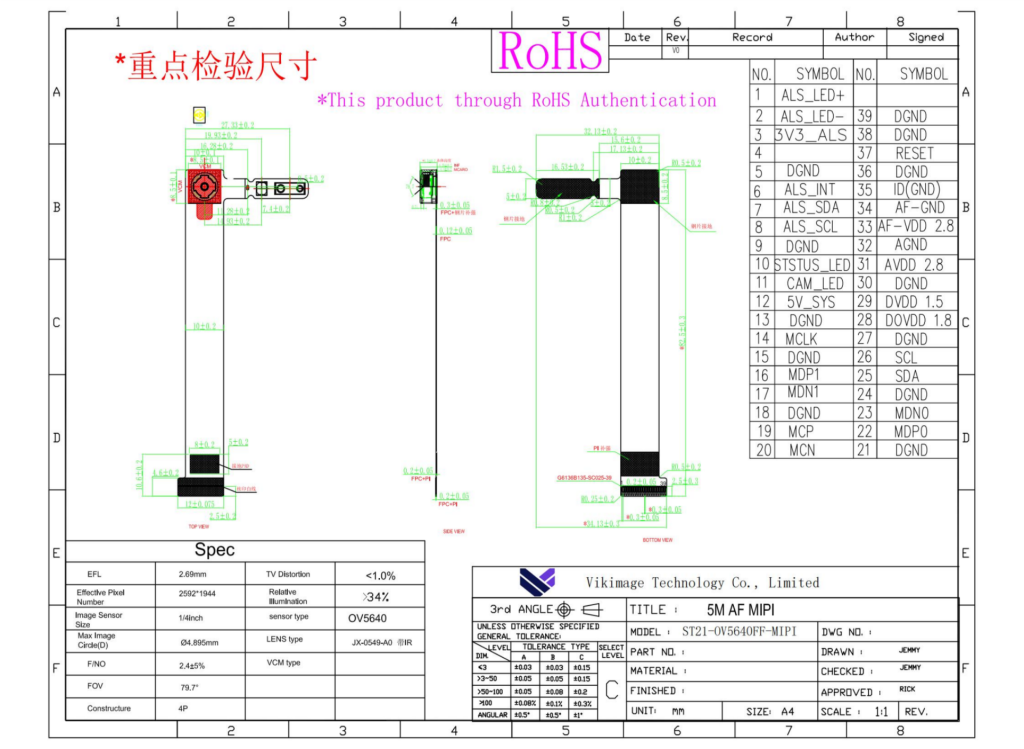

SPECIFICATION |
|
|
Image Sensor |
1/4″ OV5640 |
|
Pixel Size |
1.4 µm x 1.4 µm |
|
Resolution |
5.0 Megapixel 2592H x 1944V |
|
Interface |
MIPI |
|
FOV |
79.7 degree |
|
Lens |
EFL: 2.69mm F/NO: 2.4±5%mm JX-0549-A0 IR |
|
Focus type |
Auto Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Operating Temp |
-40°C ~ +95°C |
|
Module Size |
82.5mm x 32.13mm |
