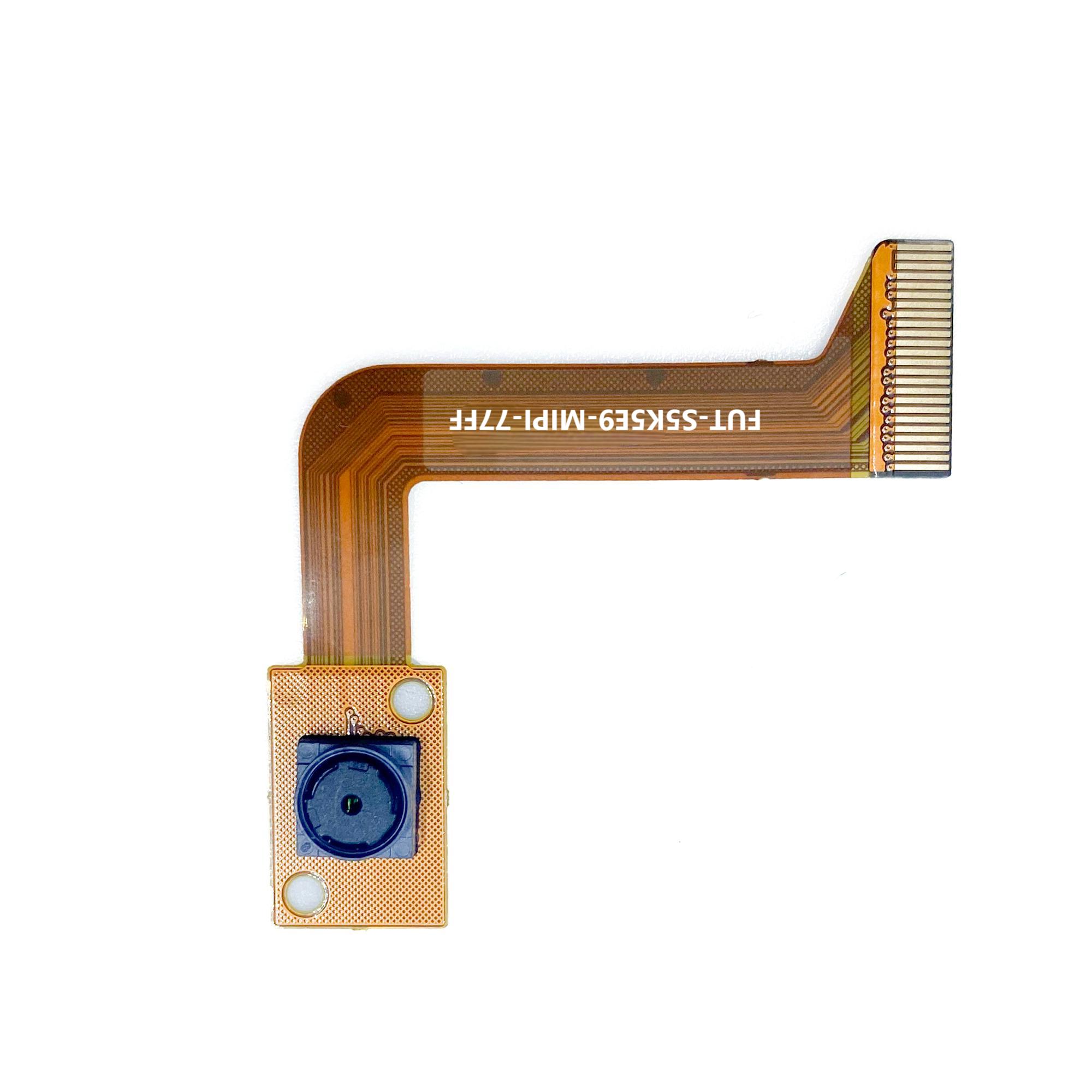

Vikimage 5MP MIPI Camera Module S5K5E9YX04

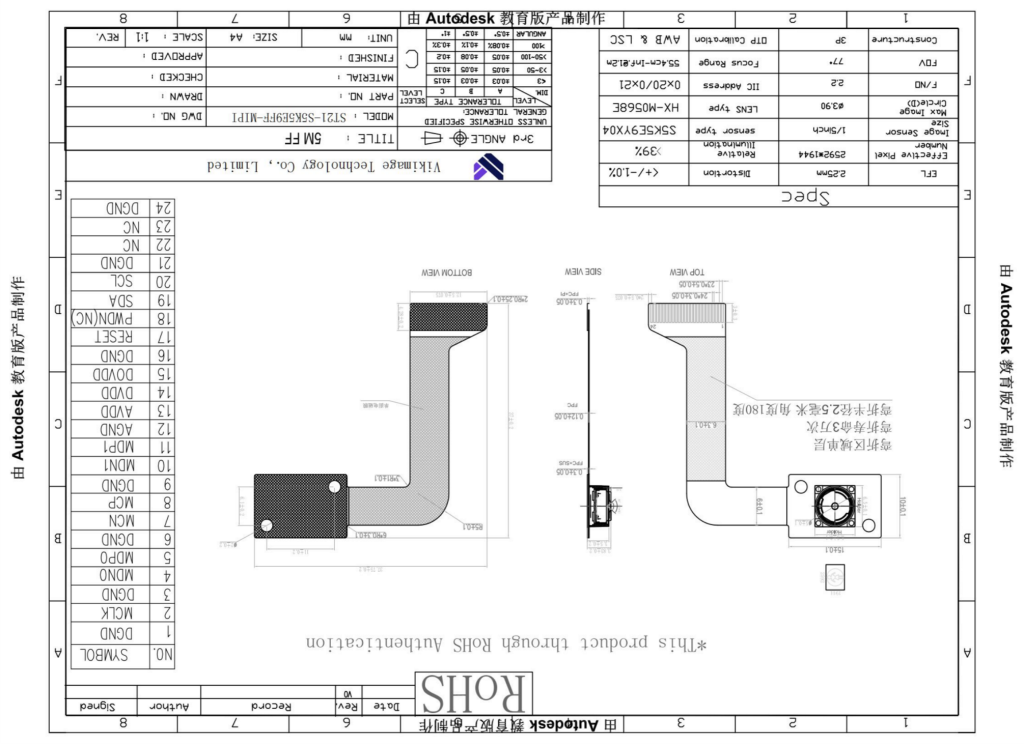

Model: FUT-S5K5E9-MIPI-77FF
The camera module features a 1/5″ S5K5E9YX04 image sensor with 1.12 µm pixels and a 5.0 MP resolution (2592H x 1944V). The lens has a 2.25mm effective focal length and an f/2.2 aperture (HX-M0568E), with fixed focus. It employs an electronic rolling shutter and operates in temperatures from -25°C to +70°C. The module dimensions are 37.75mm x 37mm x 3.83mm.
- 5 Megapixel 2592H x 1944V
- Module Size: 37.75mm x 37mm x 3.83mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/5″ S5K5E9YX04 |
|
Pixel Size |
1.12 um |
|
Resolution |
5.0 Megapixel 2592H x 1944V |
|
Interface |
MIPI |
|
FOV |
77 degree |
|
Lens |
EFL: 2.25mm F/NO:2.2mm HX-M0568E |
|
Focus type |
Fixd Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Operating Temp |
-25°C ~ +70°C |
|
Module Size |
37.75mm x 37mm x 3.83mm |
