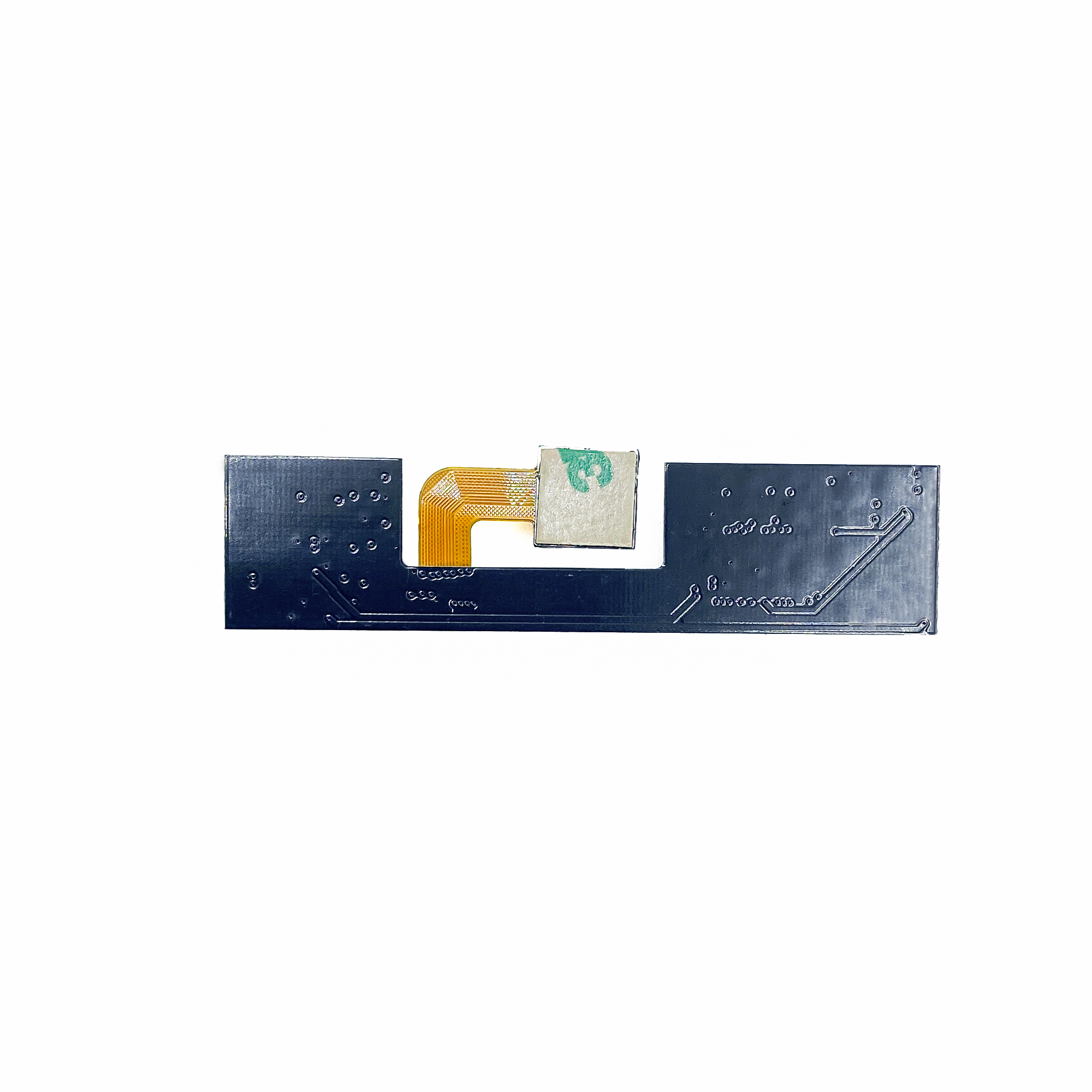

Vikimage 5MP USB2.0 Camera Module OV5693
Model: FUT-OV5693-USB-77FF
The camera module features a 1/4″ image sensor with 1.4 µm x 1.4 µm pixels and a 5.0 MP resolution (2592 x 1944). The lens has a 2.92mm effective focal length and an f/2.2 aperture, with fixed focus. It uses an electronic rolling shutter and operates in temperatures from -30°C to +70°C. The module dimensions are 60mm x 14.5mm x 5.12mm.
- 5 Megapixel 2592 x 1944
- Module Size: 60mm x 14.5mm x 5.12mm
- Electronic Rolling shutter
- Fixed Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/4″ |
|
Pixel Size |
1.4um(H) x 1.4um(V) |
|
Resolution |
5.0 Megapixel 2592 x 1944 |
|
Interface |
USB |
|
FOV |
76.6 degree |
|
Lens |
EFL: 2,92mm F/NO:2.2mm |
|
Focus type |
Fixd Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Operating Temp |
-30°C ~ +70°C |
|
Module Size |
60mm x 14.5mm x 5.12mm |
