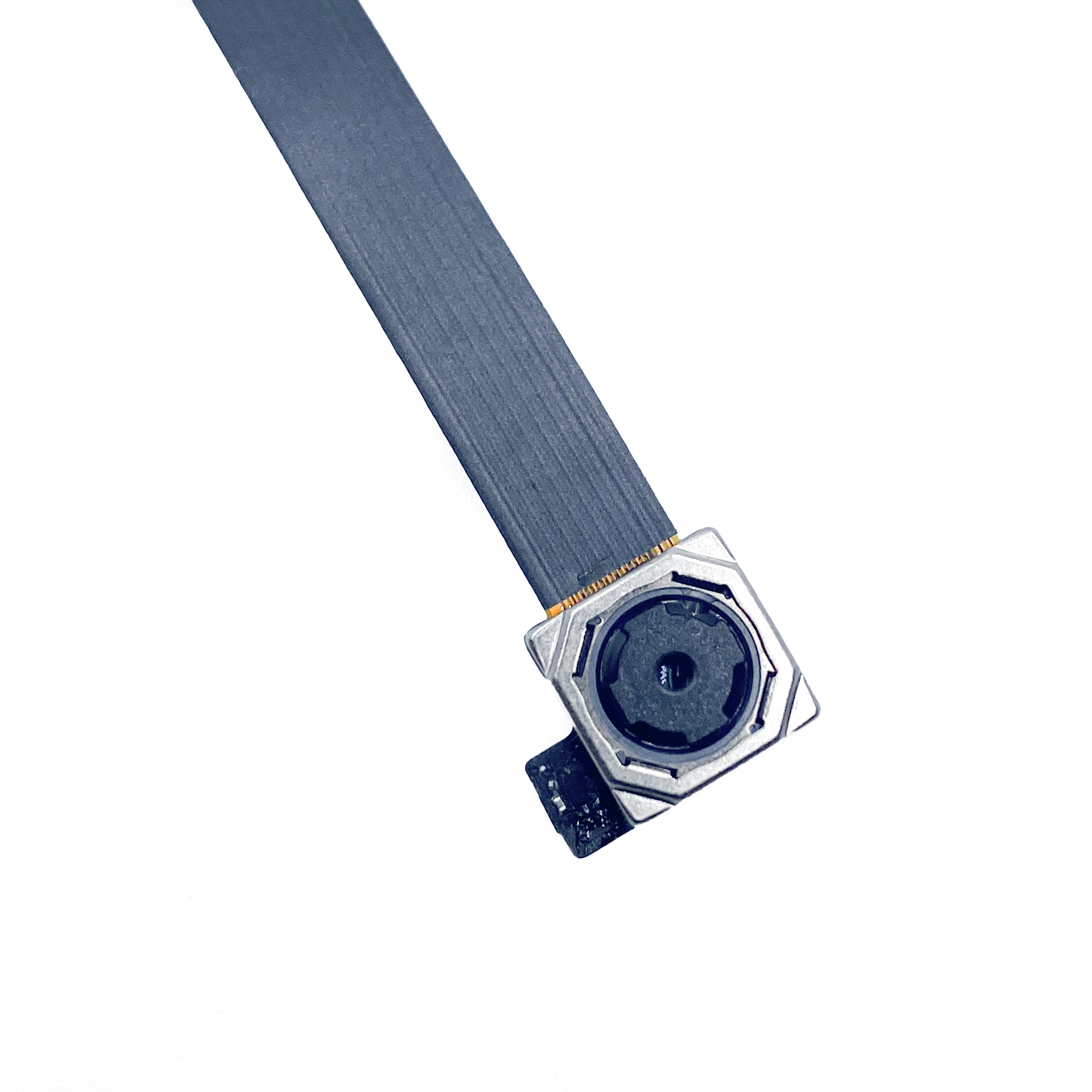

Vikimage 8MP MIPI Camera Module OV8858
Model: FUT-OV8858-MIPI-75AF
The camera module features a 1/4″ OV8858 image sensor with 1.12 µm x 1.12 µm pixels and a 5.0 MP resolution (3280H x 2464V). It utilizes a MIPI interface and provides a 75° field of view. The lens has a 2.94mm effective focal length and an f/2.4 aperture, supporting auto-focus. The module operates with an electronic rolling shutter and functions across temperatures ranging from -30°C to +85°C. Its dimensions are 95mm x 85mm x 4.05mm.
- 8 Megapixel 3280H x 2464V
- Module Size: 95mm x 85mm x 4.05mm
- Electronic Rolling shutter
- Auto Focus
|
SPECIFICATION |
|
|
Image Sensor |
1/4″ 0V8858 |
|
Pixel Size |
1.12um x 1.12um |
|
Resolution |
5.0 Megapixel 3280H x 2464V |
|
Interface |
MIPI |
|
FOV |
75 degree |
|
Lens |
EFL:2.94mm F/NO:2.4mm |
|
Focus type |
Auto Focus |
|
Shutter type |
Electronic Rolling shutter |
|
Operating Temp |
-30°C ~ +85°C |
|
Module Size |
95mm x 85mm x 4.05mm |
